Muzzy Trocar
Solid
Ranked #7 of 8 broadheads
$42.99
The Trocar is the working-class fixed blade: one-piece stainless ferrule, three .035 blades set on a right helix, and that famous bone-splitting Trocar tip. The helical blade layout spins the arrow like fletching does, which is why this short little head groups well at distance. Nothing exotic, nothing to deploy, nothing to fail.
Standout feature: Right-helical blade orientation that stabilizes the arrow in flight — a fixed head that behaves at speed without micro-tuning.
The verdict
The Muzzy Trocar earns a CareScore of 47.3/100 (solid), ranking #7 of 8 broadheads we’ve scored at $42.99. Right-helical blade orientation that stabilizes the arrow in flight — a fixed head that behaves at speed without micro-tuning.
Scored by the published CareScore v1.1.0 methodology from manufacturer specs, June 2026.
Pros
- Cheapest proven head in this lineup at street prices
- Solid one-piece stainless ferrule shrugs off shoulder blades
- Compact profile flies clean from fast compounds
- Trocar XB and Ti variants cover crossbows up to 125 grain
Cons
- Standard vertical-bow version comes in 100 grain only
- 1-3/16 inch cut is modest — expect tracking jobs on marginal hits
- Blades aren't the sharpest out of the package; touch them up
Real questions archers ask about the Trocar
Mined from public archery communities (June 2026); answered by Archery Care using our scored data. Source links go to the original discussions.
Will Trocars hit with my field points, or do I need to broadhead-tune my bow first?
Owners with a well-tuned bow report Trocars grouping with field points — one says it's the only fixed head he shoots accurately past 100 yards. But that's the catch: any fixed head amplifies a tune your field points hide, so confirm broadhead-to-field-point impact and walk-back tune if they're apart. A tuned bow shoots them with your field points; an untuned one won't, and that's true of every fixed blade.
Is the Trocar actually an upgrade over the classic Muzzy MX-3 / green 100-grain 3-blade?
It's a real upgrade for most shooters — the one-piece steel ferrule and short, helical-bladed profile fly cleaner and tougher than the classic MX-3, and owners credit it with full pass-throughs on heavy hits. The MX-3 still kills, but the Trocar is the more accurate, more bone-resistant head. If you've shot MX-3s for years and love them, there's no urgency; buying new, the Trocar's the better head.
Is the Trocar enough head for elk, or should I go with something like the QAD Exodus?
It can take elk — hunters report double-shoulder pass-throughs and elk kills on the one-piece steel ferrule — but the modest 1-3/16" cut means you're relying on penetration over width. The QAD Exodus is the common cross-shop here and a fair alternative with a similar philosophy. For elk, either works with enough arrow weight; if you want margin, the Exodus's thicker .040 blades edge it. Both are penetration-first heads.
Do the tiny blade-retention Allen screws strip when you try to replace blades?
Yes — this is the Trocar's most consistent complaint. The tiny Allen set screw that retains the blades strips or arrives loose, and enough owners hit it that they treat Trocars as effectively one-and-done rather than fight blade swaps. Seat the screw carefully with the right-size key and don't over-torque. If reusability matters a lot to you, a head with a friendlier blade system will frustrate you less.
Does the offset/helical blade orientation need to match my fletching direction?
The right-helical blade orientation is built into the head and works best with a matching helical fletch — it's part of why the Trocar stabilizes well at speed. You don't have to match it exactly, but fletching that fights the blade's spin direction can hurt flight. Run a right-helical vane setup and it spins up cleanly.
How do the fixed-blade Trocars fly out of a fast crossbow on whitetails?
Owners run them out of fast crossbows on whitetail and report clean pass-throughs — the compact one-piece head handles crossbow speeds well. Confirm the head with your crossbow's speed and check Muzzy's crossbow guidance, since fixed heads get harder to tune as velocity climbs. For whitetail at typical crossbow ranges, the Trocar is a proven, affordable choice.
Do the blades hold an edge through a shot, or do they need touching up out of the package?
Sharpness out of the package is genuinely split — some find them insanely sharp and only touch up after smashing both shoulders, others report poor edge retention, including a moose hunter who needed a follow-up shot. Check and touch up the edge before you hunt; it's a one-piece steel head, so it takes a sharpener well. Don't assume every head in the pack is hunting-sharp out of the box.
Community Pulse
What owners and shoppers actually say, quantified across 10 public discussions reviewed in June 2026.
Accuracy and broadhead flight
mixedThe most repeated praise is that Trocars group with field points from a well-tuned bow — several call it their go-to fixed blade and one claims it's the only fixed head he can shoot accurately past 100 yards. But two threads center on hunters whose Trocars hit 8+ inches off or threw random fliers until the bow (or cheap arrows) got sorted, so the accuracy is widely seen as tune-dependent.
Toughness through bone
praiseHunters repeatedly credit the one-piece steel ferrule and thick .035 blades for full pass-throughs on heavy hits — a double-shoulder deer pass-through, elk kills, and one crossbow user running the same head through four deer. A minority dissent: one Rokslide poster found the chisel tip less durable than expected and gave up on them after one use.
Blade-replacement screws
criticismThe single most consistent gripe: the tiny Allen set screw that retains the blades strips or arrives loose, making blade swaps frustrating enough that several owners call Trocars a one-and-done head. This complaint shows up across ArcheryTalk, Rokslide, and Bowhunting.com threads spanning a decade.
Sharpness and edge retention
mixedGenuinely split. Some report blades insanely sharp out of the package that only needed a touch-up after smashing both shoulders; others report poor edge retention — including a moose hunter who needed a follow-up shot 45 minutes later and swore them off. Veterans on Crossbow Nation recommend routinely dressing the factory edge on a diamond stone.
Standard fixed vs hybrid variants
criticismWhen the Trocar HB/HB-Ti hybrids come up, sentiment turns negative relative to the standard fixed head: erratic flight past 35-40 yards, dull bleeder blades blamed for deflections on elk, and crossbow users who have watched buddies' hybrids break on deer while the fixed version kept killing. The community consensus treats the original fixed Trocar as the proven one.
Value for money
mixedCrossbow Nation users call them reasonably priced and stock up on multi-pack deals, and even skeptics concede they're cheap enough to treat as disposable. The flip side is that same framing — one Rokslide thread dubs Muzzy the budget brand of broadheads, affordable partly because you may not reuse a head.
How we counted: we read 10 public discussions across Reddit and archery forums, grouped recurring topics, and counted distinct threads (not comments) where each theme appeared favorably or critically. Summaries are paraphrased in our own words; every count links to its sources. Note: All 10 threads were directly fetched and read (ArcheryTalk, Crossbow Nation, and Bowhunting.com via direct HTTP after WebFetch hit a Tollbit paywall redirect; Rokslide via WebFetch). Reddit could not be included: reddit.com is blocked to the search crawler and JSON endpoints returned blocked/HTML responses, so no r/bowhunting threads are cited despite the brief naming it. Bowsite has multiple promising Trocar threads (e.g. 'Muzzy Trocar Review', 'Muzzy trocar for elk?') but the site returned 403/Cloudflare challenges on every fetch attempt, so they were excluded rather than cited unread. Variant ambiguity is real: 'Trocar' covers the standard fixed 3-blade, a crossbow-rated fixed version, and HB/HBX/HB-Ti hybrids — I excluded HBX-specific threads, and the one hybrid-centric thread included (ArcheryTalk Rage-vs-Trocar, Nov 2018) is used only for the fixed-vs-hybrid theme, not for standard-head claims. Vertical-bow discussion skews older (2014-2018); the freshest substantive discussion (2024) is on Rokslide and Crossbow Nation. Favorable/critical counts are distinct-thread counts and conservative; the moose edge-retention anecdote appears second-hand in two Rokslide-related summaries and is counted once per thread where it was actually discussed.
CareScore breakdown
How the 47.3/100 was built. Each spec is normalised to a 0–100 quality score, then weighted.
Data note: FeraDyne MSRP $44.99, Lancaster $42.99 (fetched); Walmart showed $36.75 in search results. Standard Trocar is 100 grain only (grainOptions=1); the crossbow-specific Trocar XB adds 125 grain — crossbowRated marked yes on that basis, not the 290 SKU itself. Model dates to mid-2010s, still core to Muzzy's 2026 line.
Full specifications
| Cutting Diameter | 1.19" |
|---|---|
| Price (3 heads) | $42.99 |
| Blade Thickness | 0.035" |
| Ferrule Material | Steel |
| Crossbow Rated | Yes |
| Grain Options | 1 |
| Head Type | Fixed |
| Blade Count | 3 |

Trocar
Compare the Muzzy Trocar
Spec-by-spec, CareScore-driven head-to-heads against every rival in the category.
Where the Trocar ranks
Get more from your broadhead
Save & share this breakdown

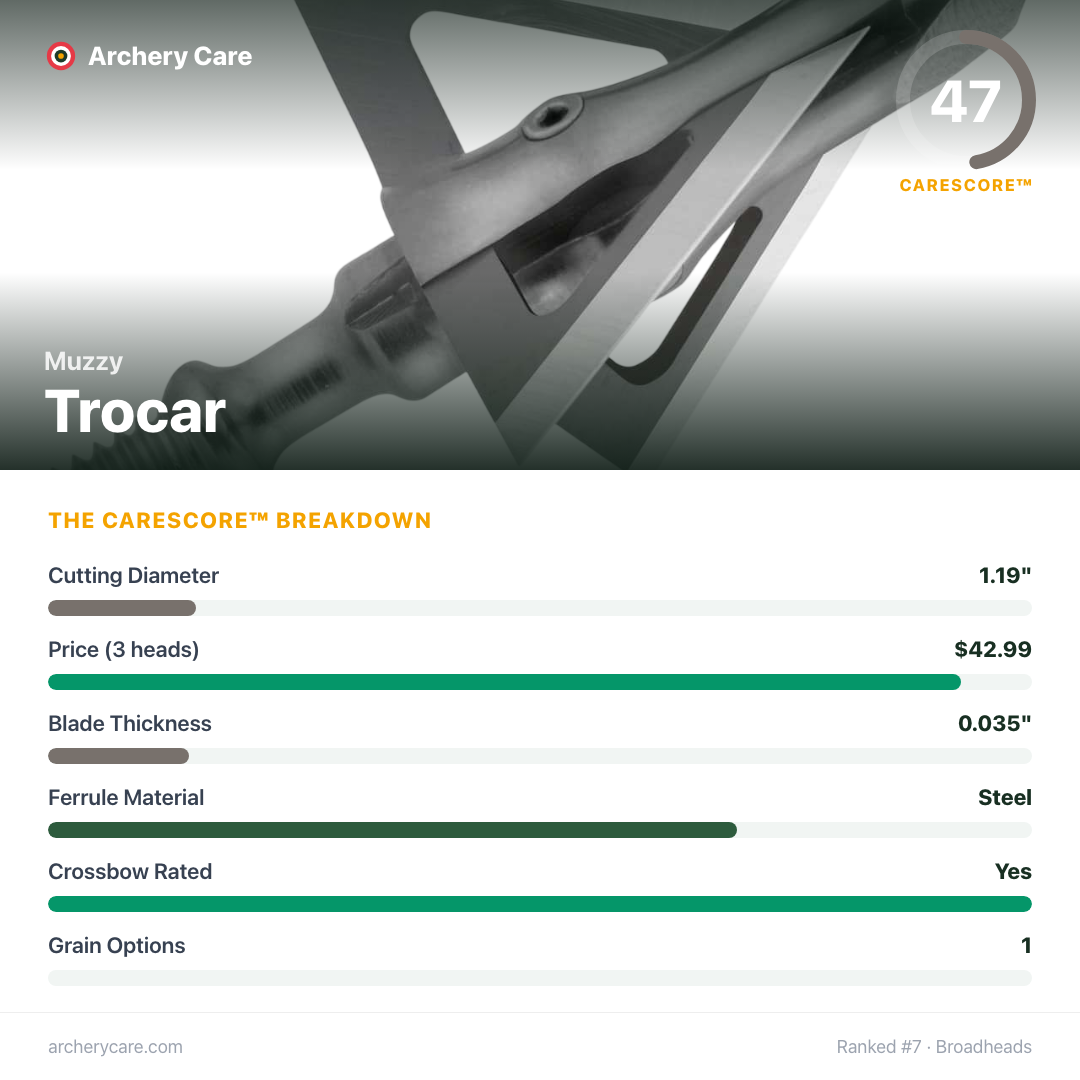

The pin-ready spec card for the Muzzy Trocar — auto-generated from the same scored data as this page.
