QAD UltraRest HDX
Archery Care
🏆 TOP-RATED ARROW REST · 2026
QAD
UltraRest HDX
70
CARESCORE™
Very Good
$159.99
Price: $159.99 · Micro: No
Arrow RestHunting

QAD UltraRest HDX

70
CareScore

Very Good

Ranked #8 of 8 arrow rests

$159.99

The HDX is QAD's long-running Berger-mount workhorse — same velocity-based drop-away and total containment as the Integrate line, bolted to the standard Berger hole so it fits basically any compound. It's been in the catalog for over a decade and QAD still builds custom-branded versions for Mathews, Hoyt, PSE, Bowtech and Elite. No micro-adjust clicks here; you're loosening screws and sliding the rest the old way.

Standout feature: The proven UltraRest drop-away and full capture bar for $160, on any bow with a Berger hole.

The verdict

The QAD UltraRest HDX earns a CareScore of 69.9/100 (very good), ranking #8 of 8 arrow rests we’ve scored at $159.99. The proven UltraRest drop-away and full capture bar for $160, on any bow with a Berger hole.

Scored by the published CareScore v1.1.0 methodology from manufacturer specs, June 2026.

Pros

  • Fits any compound with a standard Berger hole — no special riser needed
  • Full containment once loaded; capture bar keeps the arrow from falling off
  • Lock Down Technology stops bounce-back; break-away safety protects the launcher on a mis-timed cable
  • Three launcher valley heights to match shaft diameter
  • CNC aluminum, made in USA, around $130 less than the Integrate MX2

Cons

  • No micro-adjust — windage and elevation moves are screw-loosen-and-slide
  • Design dates back over a decade; heavier and bulkier than dovetail-mount rests
  • Cable-driven install means serving the cord into the down cable
  • Backordered at Lancaster at time of research

Real questions archers ask about the UltraRest HDX

Mined from public archery communities (June 2026); answered by Archery Care using our scored data. Source links go to the original discussions.

Do I have to cock the launcher with the thumb lever before every shot, or can I just nock an arrow and draw?

Just nock and draw — the HDX is a fall-away that times off your down cable, so the launcher rises as you draw and drops at the shot on its own. There's no thumb lever to cock like a target lock-up rest. The capture bar keeps the arrow contained once it's loaded, which is the whole point for treestand work.

How do I time the HDX correctly — are the printed timing lines supposed to line up at full draw?

Ignore the printed timing lines — that's the single most-repeated piece of HDX advice from experienced installers, and even QAD's own phone guidance gets argued with. Set the launcher to reach full-up in the last 1 to 1.5 inches of the draw cycle, then serve the cord above the clamp so it can't slide. Re-check timing any time you change draw weight or cables.

Why is my rest hitting my vanes or not dropping all the way — is it defective?

Almost always a timing issue, not a defect. If it's hitting vanes or not dropping fully, the launcher is coming up too early or too late — re-time it to reach full-up in the last inch-plus of the draw and make sure the cord can't slip at the clamp. Owners chase this exact symptom constantly and it usually traces back to timing drift after a bow change, not a bad rest.

Is the standard HDX functionally the same as the bow-brand-specific versions (PSE, Bowtech, Mathews, Hoyt), or is the branded one worth the extra money?

Functionally the same. The consensus from owners is that bow-brand HDX versions (PSE, Bowtech, Mathews, Hoyt) are the same rest as the standard one, sometimes with a slightly snugger brand-specific fit. Buy whichever is cheaper unless you specifically want that tighter fitment.

What can I put on the launcher to quiet the draw once the factory felt wears out?

The factory felt wears out and QAD's replacement felt kit gets knocked for weak adhesive, so owners reach for UHMW tape, medical moleskin, or an aftermarket launcher shield. Any of the three quiets the draw and outlasts the original felt. It's a five-minute fix, not a reason to avoid the rest.

Asked in Rokslide

Should I save money with the LD or Hunter, or spend up for the MXT/MX2, instead of the HDX?

For a hunting bow, the HDX is the sweet spot. Owners say it's worth the roughly $40 premium over the LD/Hunter for the cord adjustment and quieter draw, while the micro-adjust MXT/MX2 is framed as a target-archer luxury at $50-plus more. If you tune your own bow obsessively, spend up; if you want a proven hunting drop-away, the HDX is the buy.

Should I get the HDX or a limb-driven rest like a Hamskea?

Both are good — it's cable-driven versus limb-driven. The HDX locks the arrow in full containment, which hunters love for treestands and stalks, and a correctly timed one is close to fail-safe. Limb-driven Hamskeas skip the cable serving and some owners find them quieter, but they can't lock fully upright. Pick the HDX if full capture matters most; pick limb-driven if you'd rather never serve a cord.

Will the HDX work on a riser with an integrated dovetail rest mount (like a Mathews V3X), or do I need the Integrate version?

You'd want the Integrate version for an IMS riser like a V3X — the standard HDX mounts to a Berger hole, not the integrated dovetail. The HDX's whole selling point is that it fits any compound with a standard Berger hole, so on a dovetail-only setup you're looking at the wrong model. Check whether your riser still has a Berger hole; many do, and the standard HDX bolts right up if so.

Community Pulse

What owners and shoppers actually say, quantified across 15 public discussions reviewed in June 2026.

Long-term reliability

mixed
6 favorable · 3 critical

Many owners report a decade or more of trouble-free use from a single HDX, and the consensus is that a correctly timed HDX is close to fail-safe. A minority report failures — rests that stopped dropping consistently after years of use, concerns about the mechanism in sub-freezing cold, and intermittent drops that usually trace back to timing drift after bow changes.

Timing setup and instructions

criticism
0 favorable · 4 critical

The single most common pain point is timing the cable-driven cord: the printed timing lines confuse buyers (and even QAD's own phone advice gets disputed by experienced installers), and the rest must be re-timed after any draw-weight or cable change. The community workaround is to ignore the marks entirely and set the launcher to reach full-up in the last 1 to 1.5 inches of the draw cycle, then serve above the clamp so it can't slide.

Full arrow containment for hunting

praise
2 favorable · 1 critical

Hunters repeatedly cite the locked-up full-capture position as the HDX's killer feature — the arrow can't flop around or fall off at draw, which one user who tried a Hamskea Primer said was the reason he was switching back. A few veterans remove the containment bar entirely and say they never miss it.

Noise and felt durability

mixed
1 favorable · 2 critical

Owners say the HDX is noticeably quieter than the cheaper LD on the draw, but the factory felt on the launcher wears out and QAD's replacement felt kit is criticized for poor adhesive; common fixes are UHMW tape, medical moleskin, or aftermarket shields. Users who moved to the MX2 report it is noticeably quieter than the HDX.

Warranty and customer service

praise
3 favorable · 0 critical

QAD's service draws consistent praise: users describe free off-season servicing with quick turnaround, a locked-up rest being made right by the company, and shops characterizing the warranty as effectively lifetime, no questions asked.

Value within the QAD lineup

praise
5 favorable · 0 critical

The recurring verdict is that the HDX is the sweet spot for a hunting bow: worth the roughly $40 premium over the LD for the cord adjustment and quieter draw, while the micro-adjust MXT/MX2 is framed as a target-archer luxury at $50-plus more. Bow-brand-branded HDX versions are considered functionally identical to the standard one, so buyers are told to take whichever is cheaper unless they want the snugger brand-specific fit.

How we counted: we read 15 public discussions across Reddit and archery forums, grouped recurring topics, and counted distinct threads (not comments) where each theme appeared favorably or critically. Summaries are paraphrased in our own words; every count links to its sources. Note: ArcheryTalk is by far the richest venue for this product; its threads were fetched directly over HTTP with a browser user agent because the site serves a Tollbit bot-paywall (HTTP 402) to automated fetchers — all listed threads were fully read. Reddit discussion is real but sparse: mostly small threads (2-7 comments), several dating to 2016-2019; r/bowhunting itself yielded essentially nothing beyond a crosspost, so the Reddit threads here come from r/Archery and r/CompoundBow. No TradTalk, Crossbow Nation, or Bowsite/Leatherwall coverage was found, which is expected for a compound-bow drop-away rest. Disambiguation was respected: threads about the QAD Integrate MX/MX2 dovetail rests were excluded except where posters directly compared them to the HDX, and bow-brand-branded HDX variants (PSE/Bowtech/Hoyt/Mathews) were treated as the same product per community consensus in the threads themselves. One additional Rokslide thread (qad-ultrarest-hdx.112573) was fetched but excluded as a classified ad with no substantive discussion, as were several WTS listings. The Rokslide 'Why is my HDX failing' thread showed only a relative 'Saturday' timestamp, so its date (~June 2026) is approximate. Theme counts are distinct threads, counted conservatively; the 2016-2017 threads are old, but the product design has not changed materially since, and the recurring themes (timing pain, containment praise, warranty praise) are consistent across 2016-2026.

CareScore breakdown

How the 69.9/100 was built. Each spec is normalised to a 0–100 quality score, then weighted.

Street Price$159.99
6327% wt
Micro-AdjustNo
4022% wt
Rest TypeCable-driven-dropaway
8819% wt
ContainmentFull
10019% wt
MountingBerger-bolt
6514% wt

Data note: Lancaster $159.99; Podium Archer listed $168.55. Release year not published — the HDX has been in QAD's line since roughly the early 2010s (unverified); still current and sold new in June 2026. Berger mount confirmed on QAD's own product page.

Full specifications

Street Price$159.99
Micro-AdjustNo
Rest TypeCable-driven-dropaway
ContainmentFull
MountingBerger-bolt
QAD UltraRest HDX
QAD

UltraRest HDX

Compare the QAD UltraRest HDX

Spec-by-spec, CareScore-driven head-to-heads against every rival in the category.

Get more from your arrow rest

Save & share this breakdown

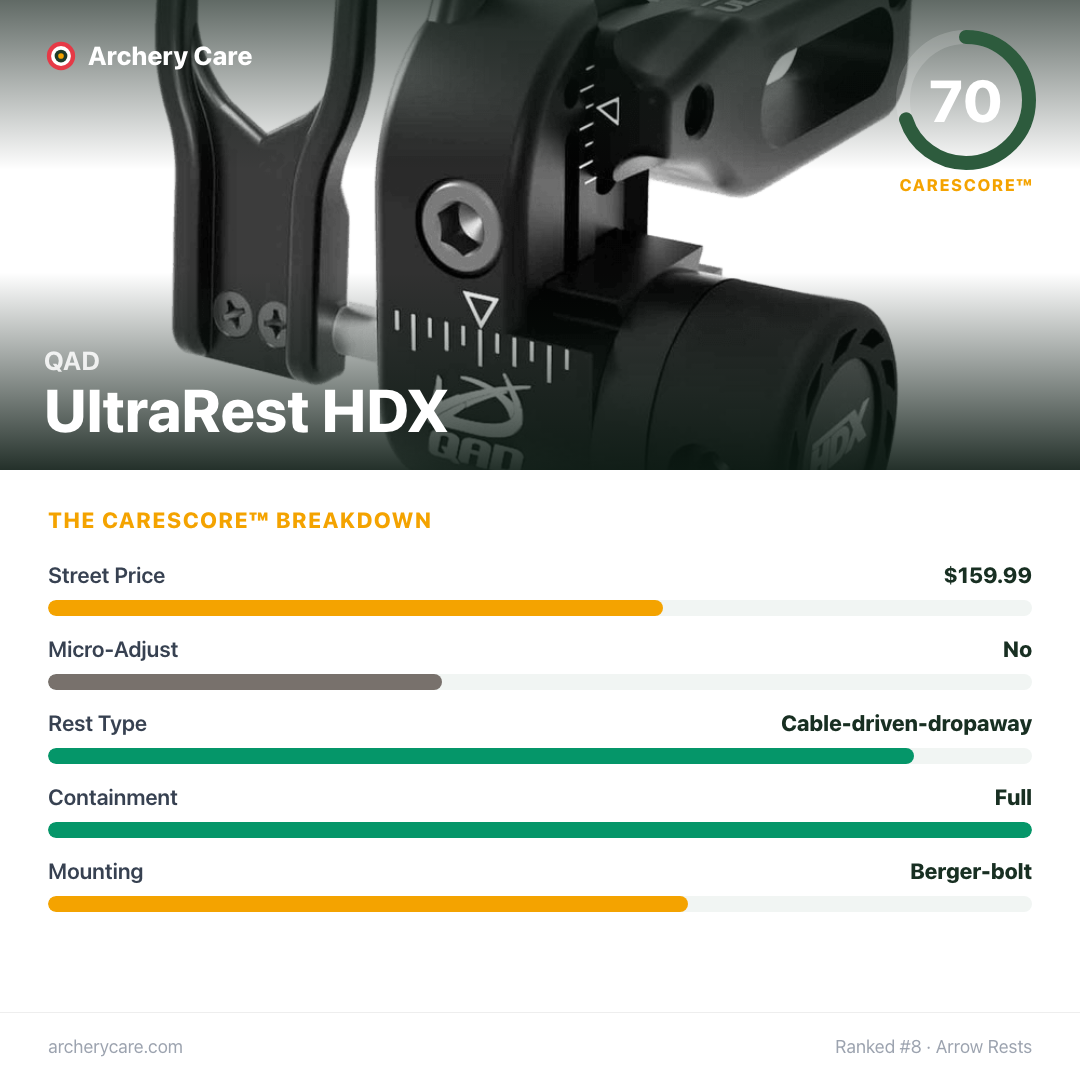

The pin-ready spec card for the QAD UltraRest HDX — auto-generated from the same scored data as this page.
